GM LS Engine 4.8 5.3 5.7 6.0 6.2 7.0 Cam Change Bolt Kit - 62 Pc - STR 346-9002

LS ENGINES - CAM CHANGE BOLT KIT - 2004 - 2014 - 4.3L, 4.8L, 5.0L, 5.3L, 5.7L, 6.0L, 6.2L & 7.0 GM - Set of 62 Pieces - NEW!!

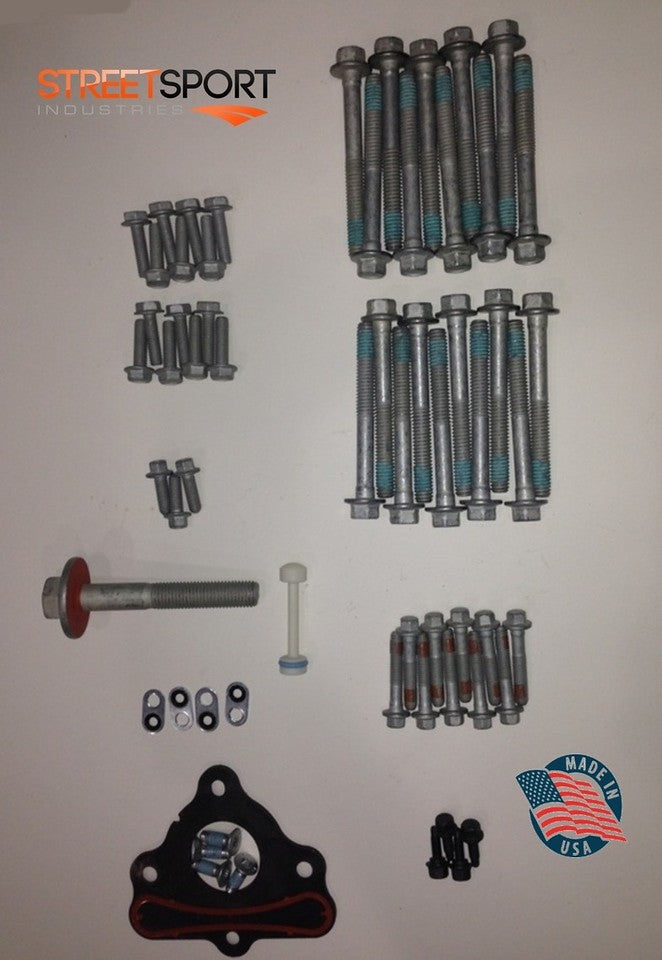

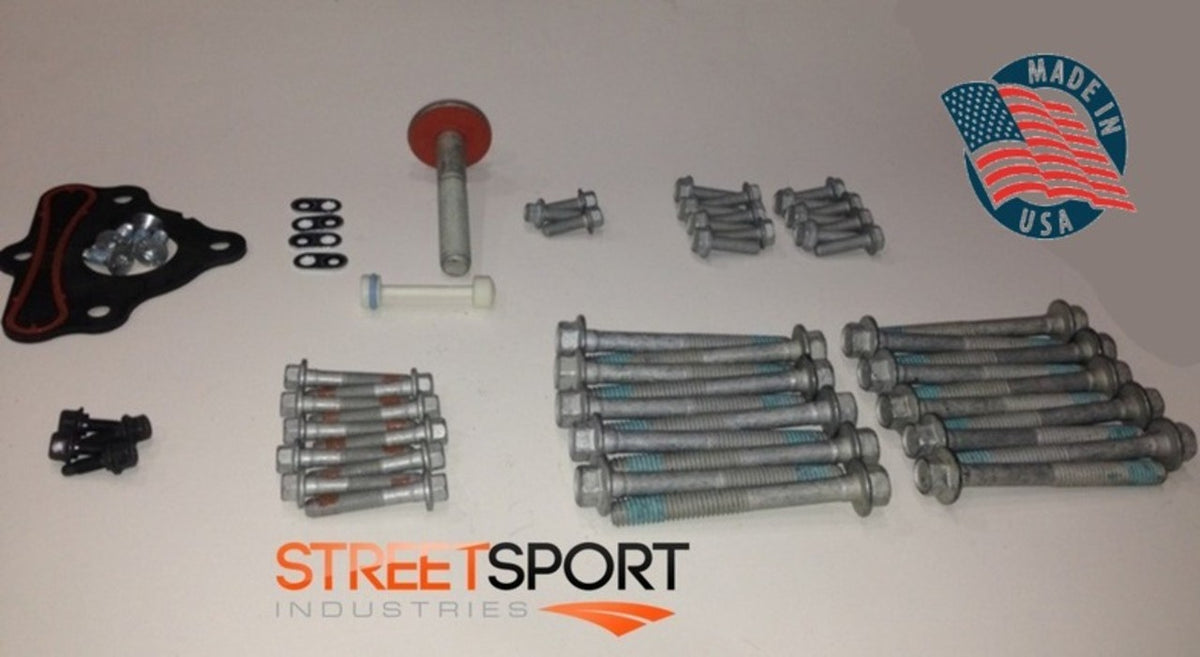

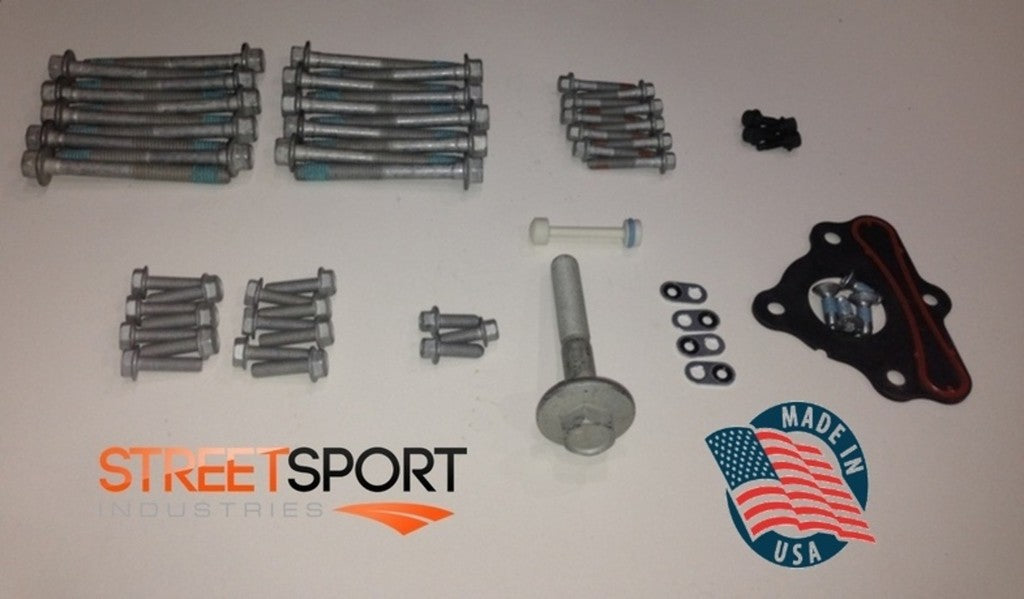

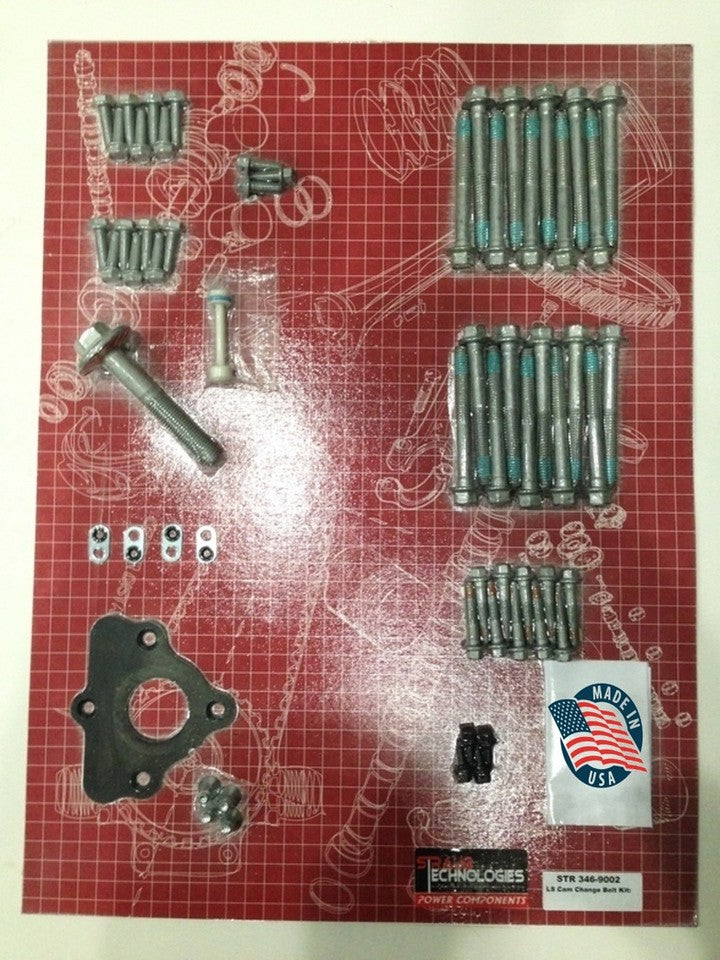

This listing is for a brand new set of Straub Technologies Cam Change Bolt kit (STR 346-9002) that contains 62 parts to fit any of the following:

GM - LS1, LS6, LR4, LM7, L59, LM4, L33, LQ4, LQ9, LS2, L76, L77, LY6, L96, LFA, LZ1,

LY2, L20, LMF, LH6, LY5, LMG, LC9, LH8, LH9, LS4, LS7, L92, LS3, L99, LS9, LSA,

LT1, L86, L83 & L82 for the 2004 - 2014 model years!

ALSO Includes the following Gen III models and years:

2004 & 2005 CSV Mondo – 5.7L

2004–2013 Mosler MT900 – 5.7L

2006–2014 Elfin MS8 Streamliner – 5.7L

2006–2014 Elfin MS8 Clubman – 5.7L

2007 SSC Ultimate Aero TT – 5.7L

In addition to the Gen III's above, the following Gen IV's are included:

2008-2014 Drakan Spyder – 6.2L – LS3

2008-2014 Tauro Sport Auto – 6.2L - LS3

2010–2014 Rally Fighter – 6.2L - LS3

2013-2014 Equus Bass 770 - – 6.2L - LS9

2011 Jensen Interceptor R – 6.2L - LS3

2006 Vertical Hummingbird helicopter – 7.0L – LS7

2012 New Zealand V8 SuperTourer – 7.0L – LS7

2012–2014 Falcon F7 – 7.0L - LS7

2014 Korres P4 – 7.0L - LS7

2007 CSV GTS – 7.0L - LS7

2008 Spada Codatronca – 7.0L - LS7

NOTE: Prior to (Feb.) 2004, all of the Gen III (Generation 3) GM small block engines had head bolts of varying lengths. In early (Feb.) 2004, GM changed the head bolt design style to the new style which are all the shorter length.

NOTE: 1997-2003 blocks and some 2004 blocks used 3 different lengths of head bolts and 2004 and up used 2 lengths, with the exception of the LS9. If the block is 2004, the bolt length must be verified before purchase as it was a transition year.

This kit used to service engines for a cam swap plus additional parts replacement. These kits contain all the hardware that needs to be replaced when doing a cam swap on a new or used LS engine. All bolts are Torque-To-Yield on any LS platform, therefore they need to be replaced. In addition to these bolts the kits have other items that wear or in time need to be replaced before failure happens. All of these parts can be removed and replaced during the cam swap. Every part in this kit is Made in the USA!!!

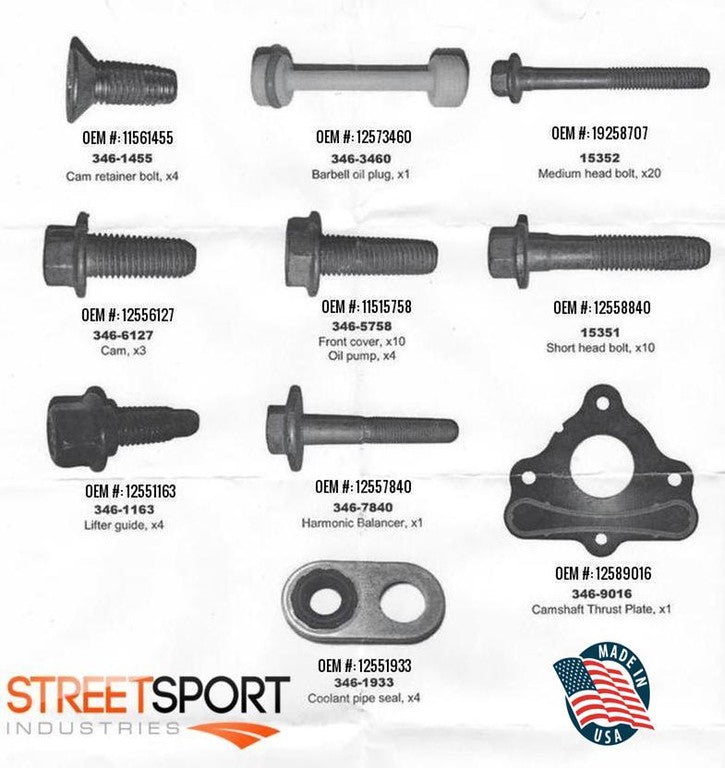

Each Single Pack includes the Same as Part of the following OEM part numbers:

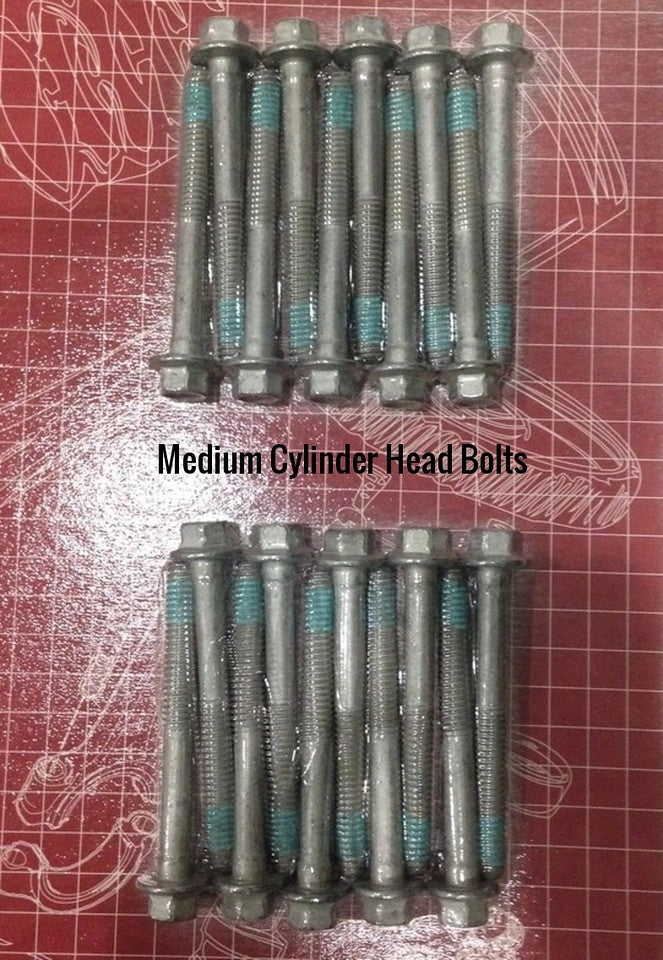

19258707 - (15352) - 20 - 11mm Hex - Medium Cylinder Head Bolts - 10 required per cylinder head. For LS1, LS2, LS6, LS7 and L92 engines. - Also known as OEM 11571134

These are the stock-replacement cylinder head bolts that are torque-to-yield and are built to the same specs as GM # 17800568. They are the Gen-4 design that use two different bolt lengths and were used by from mid-year 2004 to present. These cannot be reused after being torqued down since they stretch when torqued.

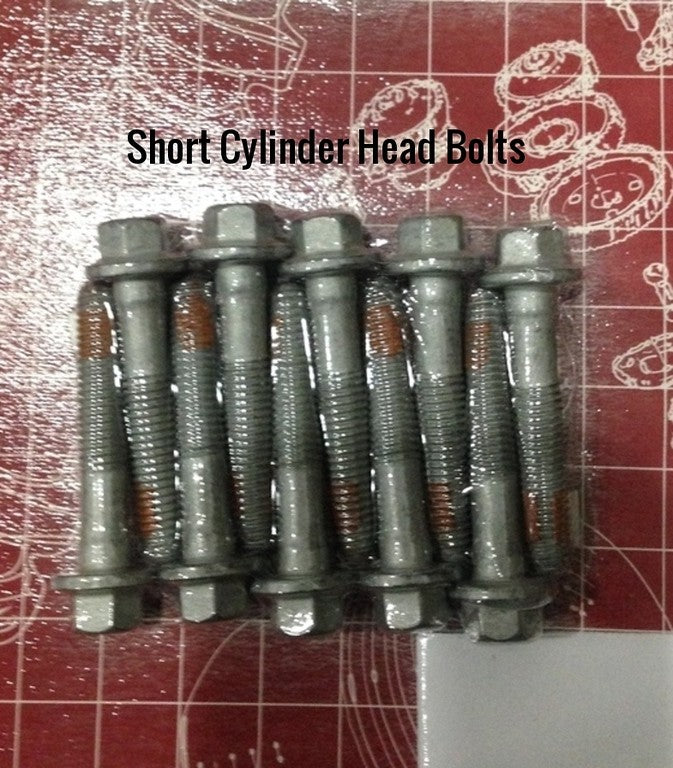

12558840 - (15351) - 10 - 8mm Hex (SINGLE USE ONLY)(1.25X45)- Short Cylinder Head Bolts - 5 required per cylinder head. For LS1, LS2, LS6, LS7 and L92 engines. - Also known as OEM 11516436

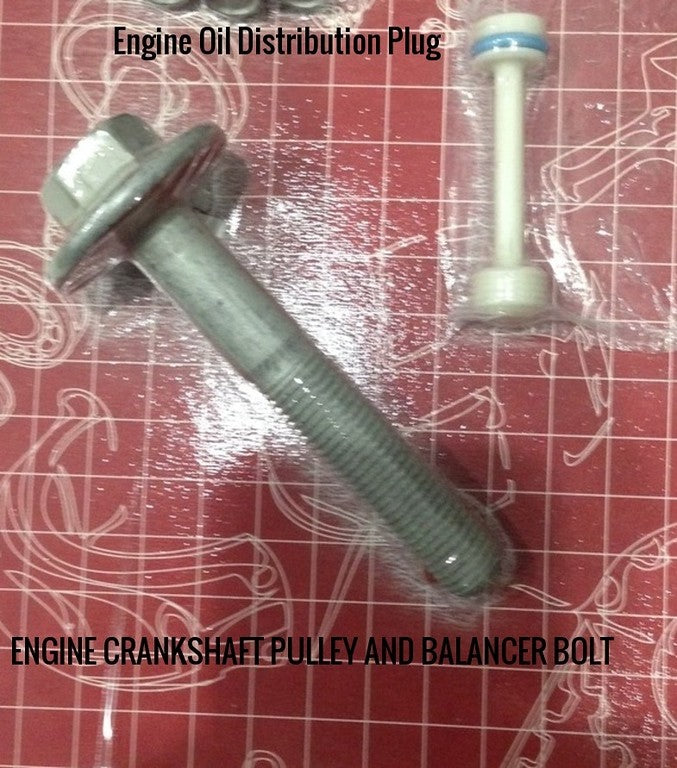

12573460 - (346-3460) - 1 - Engine Oil Distribution Plug - Also known as OEM 12558340 & 12618054

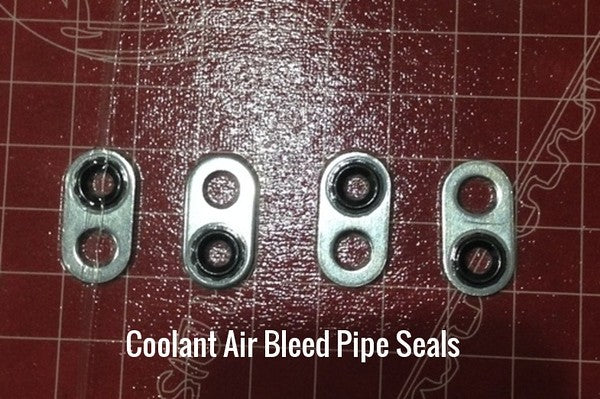

12551933 - (346-1933) - 4 - Coolant Air Bleed Pipe Seals

12589016 - (346-9016) - 1 - Camshaft Retainer (Thrust) Plate - Also known as OEM 12556437

12557840 - (346-7840) - 1 - 16mm Hex - Harmonic Balancer - ENGINE CRANKSHAFT PULLEY AND BALANCER BOLT

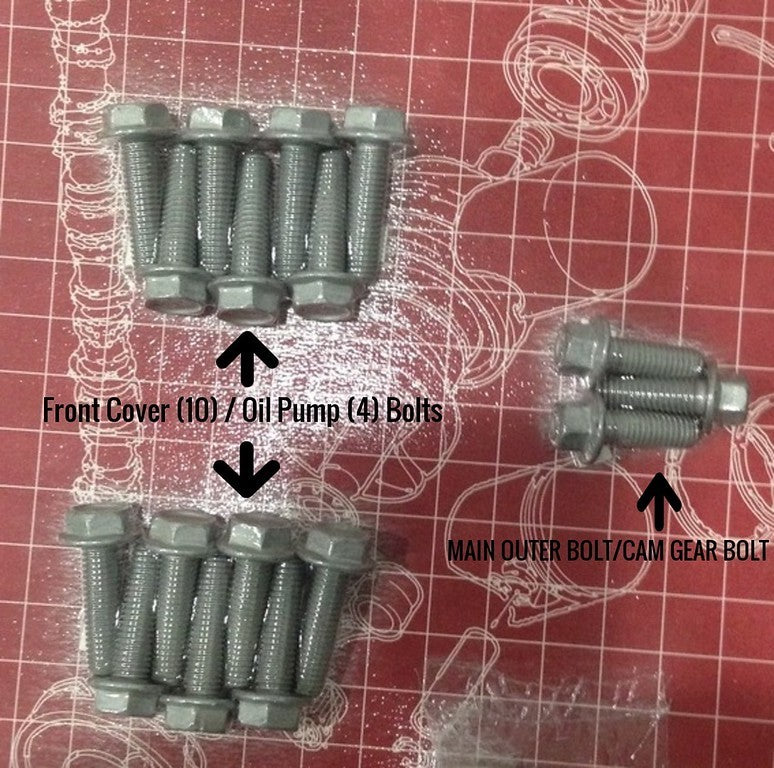

11515758 - (346-5758) - 14 - 8mm Hex (1.25X40) - Front Cover (10) / Oil Pump (4) Bolts - Also known as OEM (11516544; 11514195; 03533484; 11515791; 10005600; 11509348; 12561063; 22535866; 12551187; 22518784)

12551163 - (346-1163) - 4 - 6mm Hex (1.0X19) ENGINE VALVE LIFTER ADJUSTING GUIDES

12556127 - (346-6127) - 3 - 8mm Hex (1.25X24) MAIN OUTER BOLT/CAM GEAR BOLT- Also (94012249; 01638689) - ARP 134-1003

11561455 - (346-1455) - 4 - Torx - Camshaft Thrust Plate Bolts

All parts are comparable to TSP, ARP or GM specifications and quality!

Please be sure you know which style bolts your vehicle requires before ordering.

Specifications

• Country of Origin: United States
• Interchange Part Number: 19258707, 12558840, 12573460, 12551933, 12589016, 12557840, 11515758, 12551163, 12556127, 11561455
• Engines: LS1 LS6 LR4 LM7 L59 LM4 L33 LQ4 LQ9 LS2 L76 L77
• Engines (Cont.): LY6 L96 LFA LZ1 LY2 L20 LMF LH6 LY5 LMG LC9 LH8
• Manufacturer Part Number: STR 346-9002
• Engine Sizes: 4.8, 5.3, 5.7, 6.0, 6.2, 7.0
• Engines (Cont. ): LH9 LS4 LS7 L92 LS3 L99 LS9 LSA LT1 L86 L83 L82
• Model Years: 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
• Model Years (Cont.): 2014
• Fitment Type: Direct Replacement
